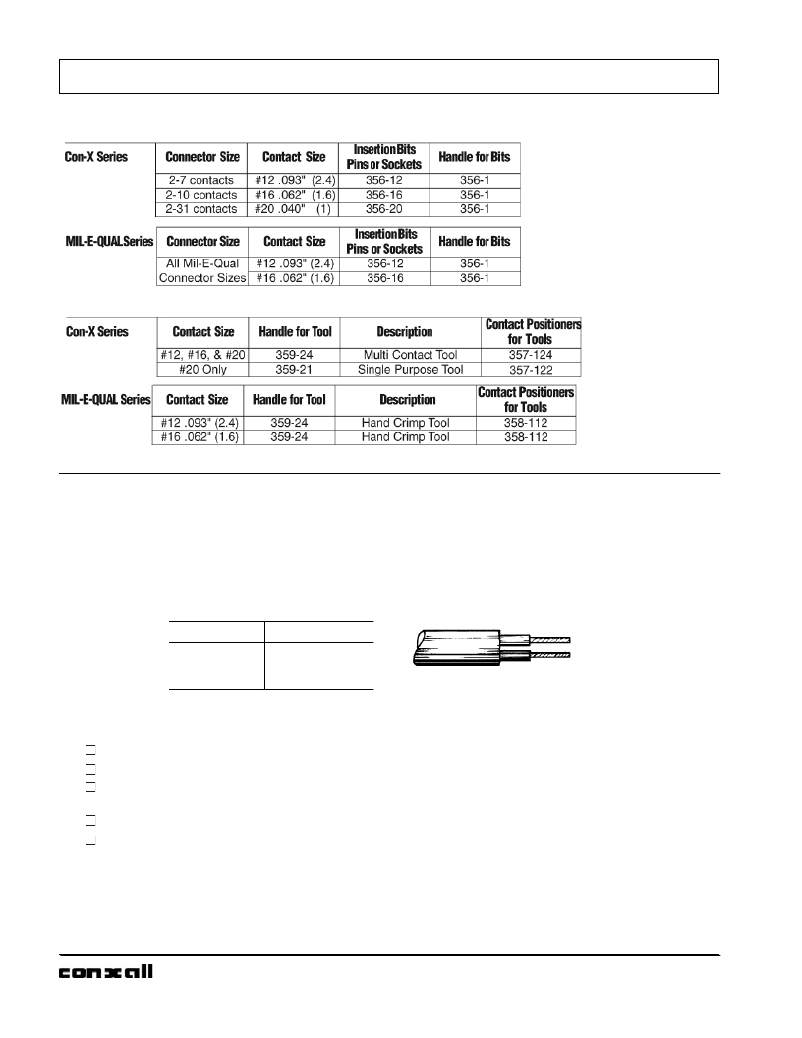

T OOLING
Contact Insertion/Removal Tools
Product not designed to
remove contacts after
insertion. Consult factory
for removal tools.
Manual Contact Crimping Tools
Pneumatic Crimping Tools - Consult Factory
Contact Crimping and Assembly Procedures:
A. Push cable through connector components, i.e. backshell, grommet, sleeve, and coupling ring.
B. Wire preparation: Strip cable to dimensions shown. Make all cuts square and sharp being careful not to nick wires
when cutting. To prevent stranded wires from fraying it is recommended that ends be tightly twisted and not solder
dipped.
Conductor Strip Lengths
CON-X
#20 -3/16
#16 -7/32
#12 -7/32
MIL-E-QUAL
#16 -9/32
#12 -7/32
Cable Stripping
C. Contact crimping tools, use as follows:
Assemble contact locator to tool.
Check tool setting for wire gage to be crimped.
Drop contacts, mating end first into locator so that it rests fully on bottom. Insert stripped lead into contact barrel
until it stops.
Close tool handles completely in one stroke. (The ratchet will not release jaws until tool has completed cycle.)
Inspect crimp to be sure there are no loose strands outside the contact which may short out to an adjacent contact.
D. Contact insertion tools. Place wired contact into proper connectors cavity. Guide tip of the insertion tool so that it starts
at the contact and slides down against the stop. Apply a steady force perpendicular to the contact until it snaps into
position.
?
601 East Wildwood, Villa Park, Illinois 60181 ? Telephone (630) 834-7504 ? Fax (630) 834-8540 ? www.conxall.com
